Description
Each tray includes 8 eight CRx implants. See manufacturer details below.
The Sonoma CRx ™ clavicle fracture repair implants are manufactured from stainless steel. The
implants are indicated for the treatment of clavicle fractures. The implants aid in the alignment and
fixation of the fractured bone, but are not intended to support the loads of the bone. The implants are
inserted into the intramedullary canal of the clavicle after preparation with the Sonoma CRx ™ surgical
instrumentation. To secure the bone fragments, the implants require mechanical actuation to deploy
fixation grippers and transition the flexible Wavibody® Technology section to rigid. A single screw is
inserted through the hub into the lateral fracture segment to secure the implant. The device is
implanted with the Sonoma CRx ™ surgical instrumentation.
The Sonoma CRx ™ clavicle fracture repair implants are intended to be used to repair acute, malunion,
or non-union fractures of the clavicle.

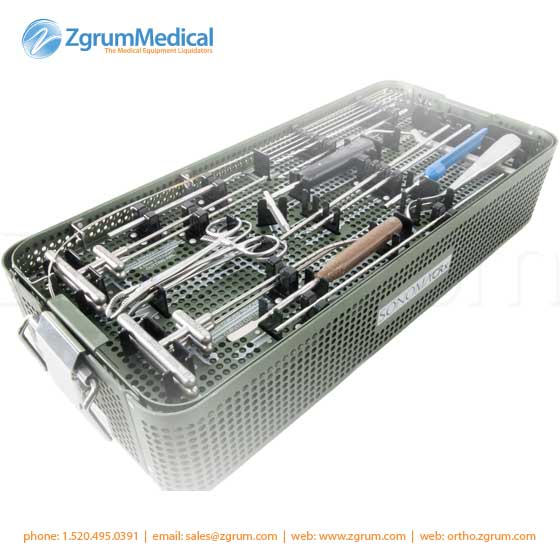

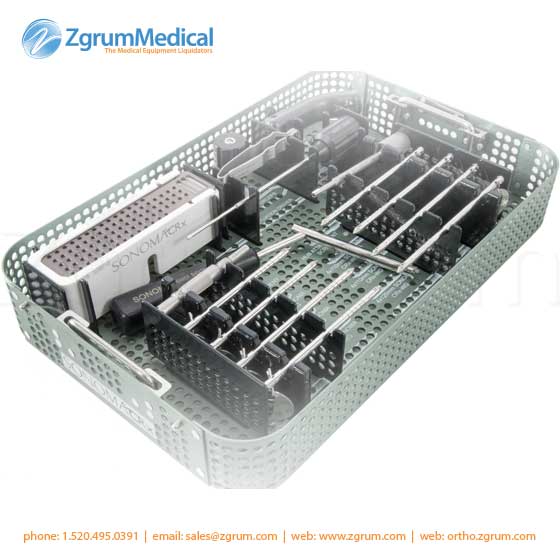

| What is included in the Sonoma CRx Clavicle Fracture Repair Set 1 | ||||
|---|---|---|---|---|
| Catalog # | Description | Quantity | ||
| CRX-WG2-4090 | 4mm x 90mm Sonoma CRx� WG | 2 | ||
| CRX-WG2-40100 | 4mm x 100mm Sonoma CRx� WG | 2 | ||
| CRX-WG2-40110 | 4mm x 110mm Sonoma CRx� WG | 2 | ||
| CRX-WG2-40120 | 4mm x 120mm Sonoma CRx� WG | 2 | ||
| EN2714 | 2.7mm x 14mm Self-Tapping, Bone Screw | 2 | ||
| EN2716 | 2.7mm x 16mm Self-Tapping, Bone Screw | 2 | ||
| EN2718 | 2.7mm x 18mm Self-Tapping, Bone Screw | 2 | ||
| EN2720 | 2.7mm x 20mm Self-Tapping, Bone Screw | 2 | ||
| EN2722 | 2.7mm x 22mm Self-Tapping, Bone Screw | 2 | ||
| EN2724 | 2.7mm x 24mm Self-Tapping, Bone Screw | 2 | ||
| EN2726 | 2.7mm x 26mm Self-Tapping, Bone Screw | 2 | ||
| CS0065 | Spade-Tip Guide Wire, (SINGLE USE) | 2 | ||
| CS0039 | K-Wire single diamond point 1.6mm (SINGLE USE) | 3 | ||
| CS0043 | 2.0mm Drill Bit (SINGLE USE) | 2 | ||
| CS0045 | 4.5mm Cannulated Drill Bit (SINGLE USE) | 1 | ||
| DRE-0100-G | 4.5mm Cannulated, Flexible Reamer | 2 | ||
| CS0070-G | Reamer Depth Gauge | 1 | ||
| IN0118 | 2.7mm Bone Screw Caddy/ Cover | 1 | ||
| IN0160 | 2.5mm Captive Hex Screw Driver Bit | 1 | ||
| IN0041 | Cannulated Phenolic Screw Driver Handle | 1 | ||
| IN0119 | CRX Outrigger | 1 | ||
| IN0121 | Thumb Screw CRx (Outrigger) | 1 | ||
| IN0165 | External Sheath CRx (Outrigger) | 1 | ||
| IN0082 | 4.0mm CRx Hub Attachment Screw | 1 | ||
| IN0123 | 4.0mm Hub Attachment Tube | 1 | ||
| IN4001 | 4.0mm CRx Actuation Driver | 1 | ||
| IN0061 | CRX Implant Insertion Guide | 1 | ||
| IN0102 | 4mm Gripper Gauge | 1 | ||
| IN0066 | 3.5mm Drill Bit Non-cannulated | 1 | ||
| IN0068 | 3.0mm Straight Trocar | 1 | ||
| IN0064 | 3.0mm Curved Trocar | 1 | ||
| IN0140 | 4.5mm Straight Cutting Awl | 1 | ||
| IN0142 | 4.5mm Curved Cutting Awl | 1 | ||
| IN0081 | Soft Tissue Trocar | 1 | ||
| IN0074 | U-Shape Guide | 1 | ||
| IN0033 | Periosteal Elevator | 1 | ||
| IN0056 | Bone Clamps 6� | 1 | ||

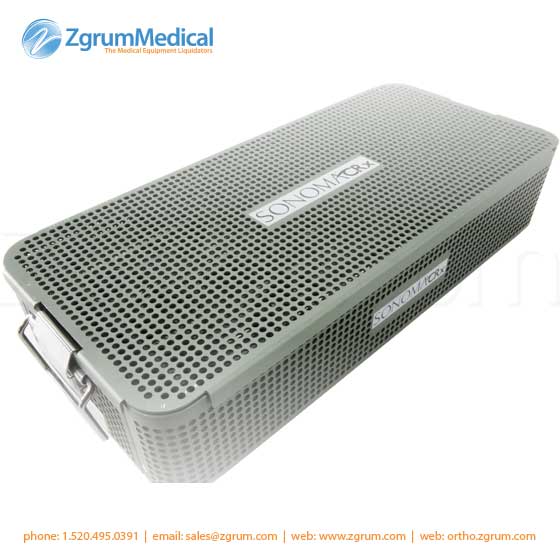

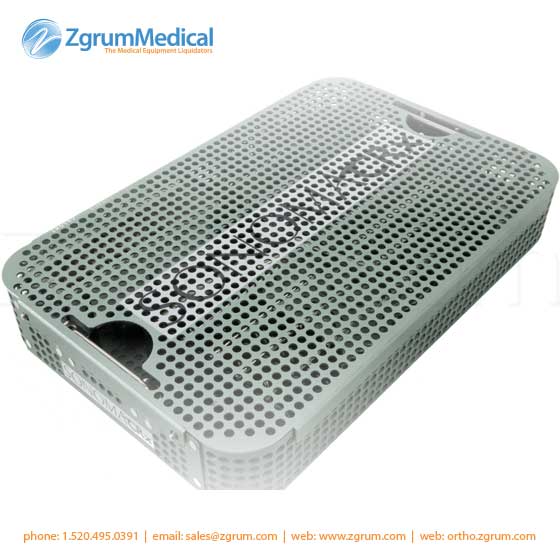

| IN0117 | Implant Sterilization Case | 1 | ||

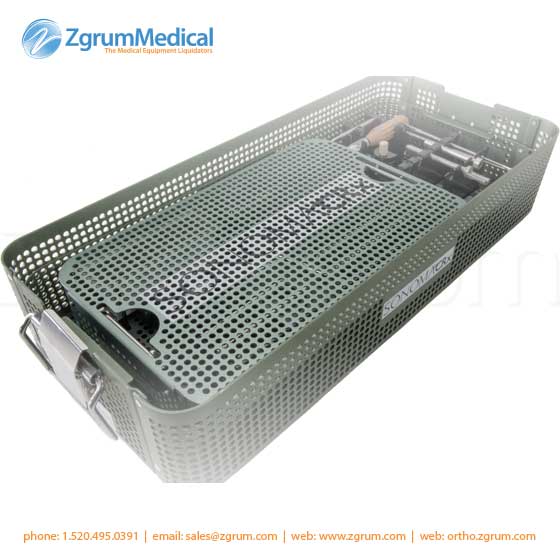

| IN0116 | Instrument Sterilization Case | 1 | ||
| IN0108 | Notched Crego Elevator | 1 | ||
| IN0126 | Sharp Hook | 1 | ||
| IN0055 | Screw Forceps | 1 | ||
| IN0145 | Aimer Awl | 1 | ||
| Product Information | ||
|---|---|---|
| Product Name | Sonoma CRx Clavicle Fracture Repair Set 1 | |
| Manufacturer | Sonoma | |
| Mfg. Catalog # | crx-clavicle-set-1 | |
| Mfg List Price | 35000 | |
| Pictures | These pictures are for display purposes only | |
| SKU | crx-clavicle-set-1 | |
| Condition | ||
|---|---|---|
| Condition | New | |
| Overall Condition | New | |
