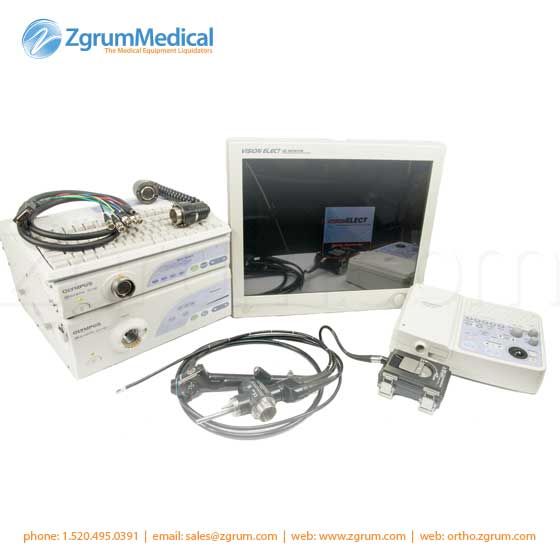

The Olympus EU-C60 Ultrasound System with BF-UC160F5

The �hybrid scope� design allows for a slimmer insertion tube with a diameter of only 6.2mm, even with the incorporated ultrasound transducer.

The BF-UC160F is used in combination with the compact, easy-to-use EU-C60 ultrasound processor.

When the dedicated aspiration needle is passed through the scope�s biopsy channel, the position of the needle tip can be confirmed in real-time during the puncturing procedure.

Power Doppler mode, made possible by electronic linear scanning, enables the user to check blood flow conditions before puncturing.

Both the direct contact method and the balloon method are available for ultrasound scanning. A balloon irrigation port is provided.

This Olympus CV-160 is the second to last generation of video processors by Olympus designed to maximize the capabilities of the Evis Exera 160 scopes with high resolution images, improved color reproduction and larger display size. It also features an improved video signal processing enabling observation of minute details without increasing noise for more accurate treatment, full height mode using the full vertical area of the monitor screen, 35% more compact that previous models and newly designed keyboard.

The CV-160 can also be used with Evis Exera Bronchoscopes as well many of the 180, 140, 130 and 100 scopes. It includes a scope ID function for the 160 and 180 scopes and the ability to capture images directly into a computer.

Our commitment is to offer you quality flexible endoscopes, repair services and accessories with full disclosure and warranty. Feel free to ask us any questions and bid with confidence.

The EU-C60 is the first ultrasound processor in the world specifically designed for EUS-guided fine needle aspiration - FNA - that configure with an endoscopic system in a single trolley. The ultrasound centre�s sleek, compact design makes it easy to install and transport on your existing endoscopy trolley, while its convenient keyboard with trackball gives you versatile, easy-to-operate control over the system's many powerful functions.

Compact, easy-to-use processor for your advanced EUS-guided FNA procedures.

Colour Power Doppler - CPD -

Easier identification of blood flow at the touch of a button.

Display Adjustment functions

Images adjusted using eight-step display ranges - 2-9 - . Zoom images in or out, be inverted or reversed.

Image Adjustment functions

Three gain settings; GAIN, NEAR GAIN, and FAR GAIN are available. The OPTIMIZE functions allows B-mode and Colour Power Doppler - CPD - images to be adjusted in three steps: PEN - penetration - , RES - resolution - , and GEN - general - .

Memory functions

The Store Image mode allows for storage of approximately 120 images in the built-in RAM. The Cine Image mode provides you with a series of sequential images taken just FREEZE activated.

Power Voltage 120VAC/240VAC

Inputcurrent 0.6A

Size Dimensions Main unit 313mm - W - � 220mm - D - � 93mm - H - *not include rubber-foot

Weight Main unit 2.4kg

Classification Type of protection against electric shock Class ?

Degree of protection against electric shock of applied par Type BF applied part.Where no classification mark appears, the device is a Type BF applied part

EMC compliance IEC60601-1-2 CISPR11 GROUP1, CLASS A

TYPE BF applied part The instrument can safely be applied to any part of the body except the heart.

Monitor observation Display mode B-mode, Color Power Doppler mode

Display polarity Positive display only

Scanning display Convex, linear

Display range 2-24cm

Signal processing Beam forming Digital beam former

STC Near, Far

Measurements Distance Measures distance defined by the '+' and '�' calipers.

Area/circumference Measures area/circumference enclosed by caliper tracing.

OB calculations Fetal age, estimated delivery date, estimated fetal weight

Cardiac calculations Ejection fraction, cardiac output

Display Calendar timer Displays date and time.

Transducer name Displays transducer name

Optimize setting Displays optimize setting

Display characters Alphanumerics and symbols

Ancillary equipment Photographic and recording units Video printer - color/monochrome - , VTR

Remote controllers Foot switch

Other Current image selection The monitor display can be switched between external input image and ultrasonic image
